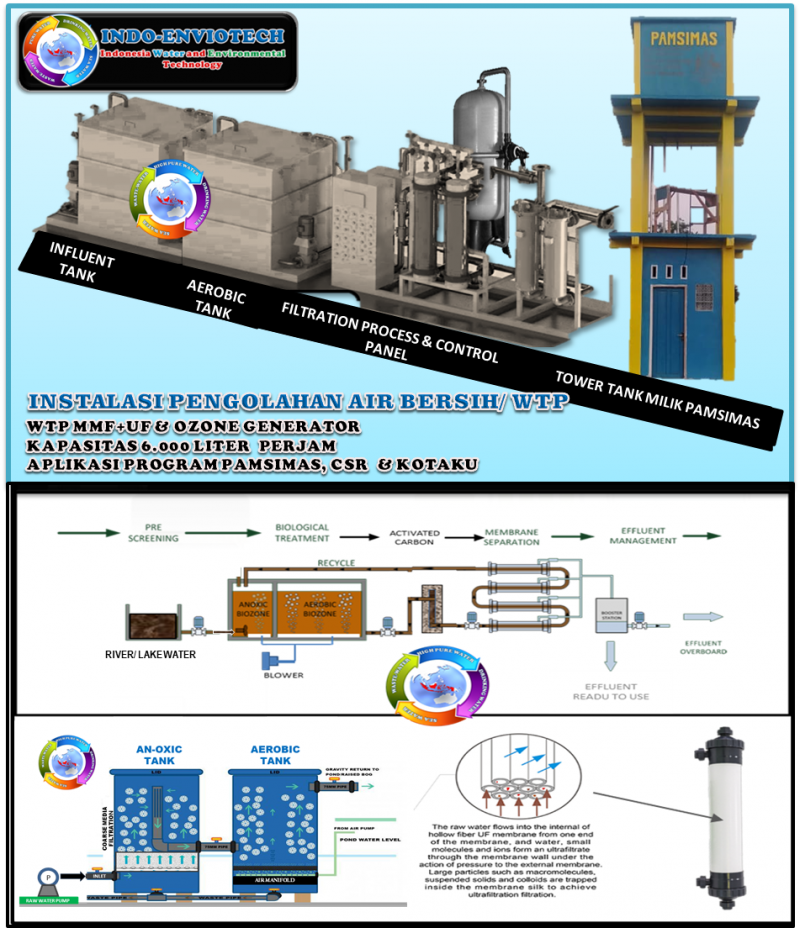

TEKNOLOGI MULTI MEDIA FILTRASI, ULTRA-FILTRASI + OZONE GENERATOR.
COCOK UNTUK PROGRAM PAMSIMAS DENGAN MEMANFAATKAN :
A. AIR SUNGAI,
B. AIR GAMBUT DAN
C. AIR SUMUR SEBAGAI AIR BERSIH.
D. AIR SUMUR DENGAN KANDUNGAN ZAT BESI
E. AIR SUMUR DENGAN KANDUNGAN ZAT KAPUR
F. AIR DENGAN KANDUNGAN BAKTERI TINGGI
SPESIFIKASI MESIN :
1. TANGKI KOTAK
MATERIAL TANGKI : PE
VOLUME TANGKI : 1000 LITER
FUNGSI TANGKI : AN-OXIC
QUANTITY : 1 UNIT
2. TANGKI KOTAK
MATERIAL TANGKI : PE
VOLUME TANGKI : 1000 LITER
FUNGSI TANGKI : AEROBIC
QUANTITY : 1 UNIT
3. CATRIDGE FILTER SCREEN & HOUSING
MATERIAL HOUSING : PE
MATERIAL CATRIDGE : WIRE MESH SUS 316
PANJANG HOUSING : L. 20"
QUANTITY : 1 UNIT
4. RING BLOWER
Power : < 500W
Voltage : 220V
5. CENTRIFUGAL PUMP
MATERIAL: STAINLESS STEEL 304
POWER : 1,5 KW x 380V x 50Hz
FLOW : 7M3/ HOUR
QUANTITY : 3
6. MEDIA FILTRATION By Activated Carbon 30” x 70”
7. BAG FILTER 20“ ( 5 Micron )
8. HOLLOW FIBER UF MEMBRANE 0,02 Micron
Membrane UF : PVC HOLLOW FIBER
Membrane Size : D. 8” x 40”
Membrane Qty : 3 Unit
INCLUDING BACKWASH SYSTEM & CLEANING SYSTEM
9. OZONE GENERATOR
Ozone Rating Flow : 10 Gram
Fungsi Ozone Generator : Membunuh Virus & Bacteria
10. ACCESSORIES FOR MACHINE
CABLES. PANEL CONTROL,
PIPE AW-TYPE, ConNECTING PIPE, Etc
PRESSURE GAUGE 2 UNITS, LEVEL,
FOOT VALVES & FLOW METER,
11. WATER PIPING LINES
Raw Water pump to the Process Tank
Material Of Pipe : PVC Pressure Ratting : 10 Bars
Size of Pipe : Dia. 1,5” c/w PE Fitting
WTP BUDGETING : Rp.260.000.000,-
