1. PUSKESMAS
2. KLINIK BERSALIN
3. DOMESTIK,
2. INDUSTRI &
3. PENGOLAHAN AIR SUNGAI BERLUMUR/ BERGAMBUT

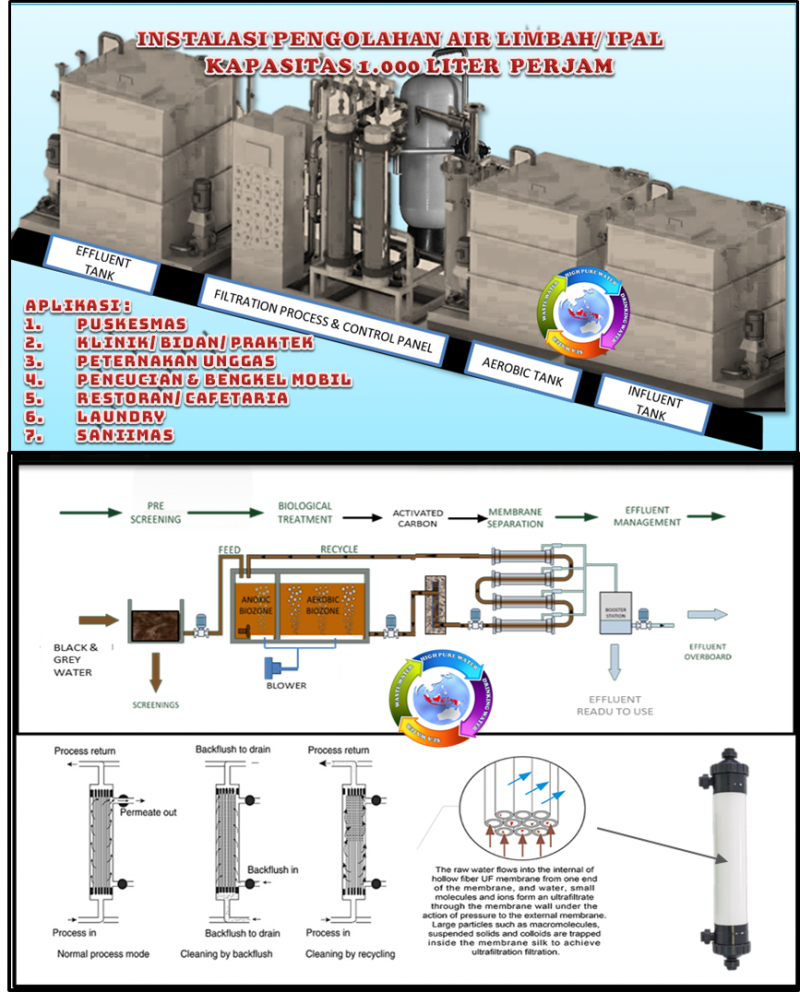

UNTUK PENGOLAHAN AIR LIMBAH 1000 LITER PERJAM
TEKNOLOGI AERASI, KARBON AKTIF, ULTRA-FILTRASI + OZONE GENERATOR.
COCOK UNTUK PROGRAM SANITASI SEPERTI :
1. IPAL PUSKESMAS
2. GEDUNG PERKANTORAN
3. CAFETARIA/ RESTORAN
4. LAUNDRY
5. PETERNAKAN/ PEMOTonGAN HEWAN
6. GARMEN
7. KLINIK BERSALIN
SPESIFIKASI MESIN :
1. TANGKI KOTAK
MATERIAL TANGKI : PE
VOLUME TANGKI : 500 LITER
FUNGSI TANGKI : AN-OXIC
QUANTITY : 1 UNIT
2. TANGKI KOTAK
MATERIAL TANGKI : PE
VOLUME TANGKI : 700 LITER
FUNGSI TANGKI : AEROBIC
QUANTITY : 1 UNIT
3. CATRIDGE FILTER SCREEN & HOUSING
MATERIAL HOUSING : PE
MATERIAL CATRIDGE : WIRE MESH SUS 316
PANJANG HOUSING : L. 20"
QUANTITY : 1 UNIT
4. RING BLOWER
Power : < 200W
Voltage : 220V
5. CENTRIFUGAL PUMP
MATERIAL: STAINLESS STEEL 304
POWER : 0,3 KW x 220V x 50Hz
FLOW : 3M3/ HOUR
QUANTITY : 3
6. MEDIA FILTRATION By Activated Carbon 10” x 54”
7. BAG FILTER 20“ ( 5 Micron )
8. HOLLOW FIBER UF MEMBRANE 0,02 Micron
Membrane UF : PVC HOLLOW FIBER
Membrane Size : D. 4” x 40”
Membrane Qty : 2 Unit
INCLUDING BACKWASH SYSTEM & CLEANING SYSTEM
9. OZONE GENERATOR
Ozone Rating Flow : 3 Gram
Fungsi Ozone : Membunuh Virus & Bacteria
10. ACCESSORIES FOR MACHINE
CABLES. PANEL CONTROL,
PIPE AW-TYPE, ConNECTING PIPE, Etc
PRESSURE GAUGE 2 UNITS, LEVEL,
FOOT VALVES & FLOW METER,
11. WATER PIPING LINES
Raw Water pump to the Process Tank
Material Of Pipe : PVC Pressure Ratting : 10 Bars
Size of Pipe : Dia. 3/4” c/w PE Fitting
12. TANGKI PENAMPUNGAN HASIL/ EFFLUENT
Material : PE
Volume : 2000 Liter
BUDGETING : Rp.75.000.000,-
