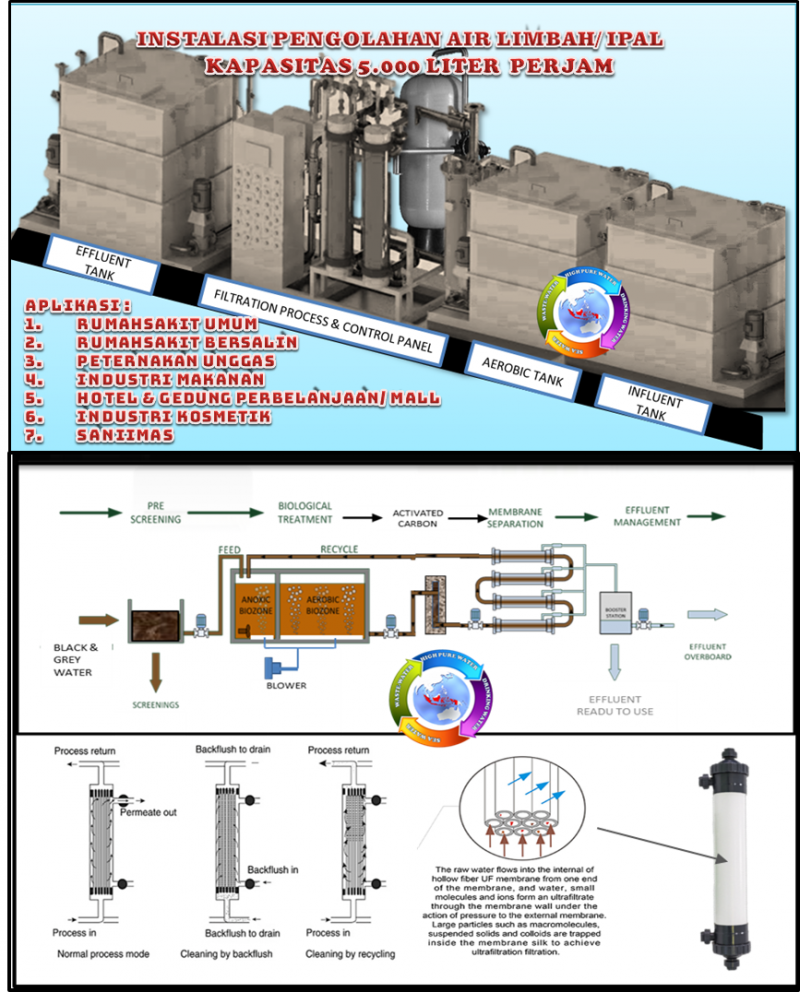

TEKNOLOGI MULTI MEDIA FILTRASI, ULTRA-FILTRASI + OZONE GENERATOR
COCOK UNTUK PROGRAM PAMSIMAS DENGAN MEMANFAATKAN
AIR SUNGAI, AIR GAMBUT DAN AIR SUMUR, SEBAGAI AIR BERSIH.
1. RAW WATER CENTRIFUGAL PUMP
MATERIAL: STAINLESS STEEL 304
POWER : 1,5 KW x 380V x 50Hz
FLOW : 5M3/ HOUR
QUANTITY : 2
2. Multi-Filtration By Activated Carbon 18” x 65”
3. Screen Filter 30“ ( 5 Micron )
4. Hollow-Fiber UF Membrane 0,02 Micron
MEMBRANE UF TYPE : PVC HOLLOW FIBER
Membrane Size : D. 4” x 40”
Membrane Qty : 8 Unit
INCLUDING BACKWASH SYSTEM & CLEANING SYSTEM
5. Ozone Generator
Ozone Rating Flow : 5 Gram
Fungsi Ozone Generator : Membunuh Virus & Bacteria
6. ACCESSORIES FOR MACHINE
CABLES. PANEL CONTROL,
PIPE AW-TYPE, ConNECTING PIPE, Etc
PRESSURE GAUGE 2 UNITS, LEVEL,
FOOT VALVES & FLOW METER,
7. WATER PIPING LINES
Raw Water pump to the Process Tank
Material Of Pipe : PVC Pressure Ratting : 10 Bars
Size of Pipe : Dia. 1,5” c/w PE Fitting
